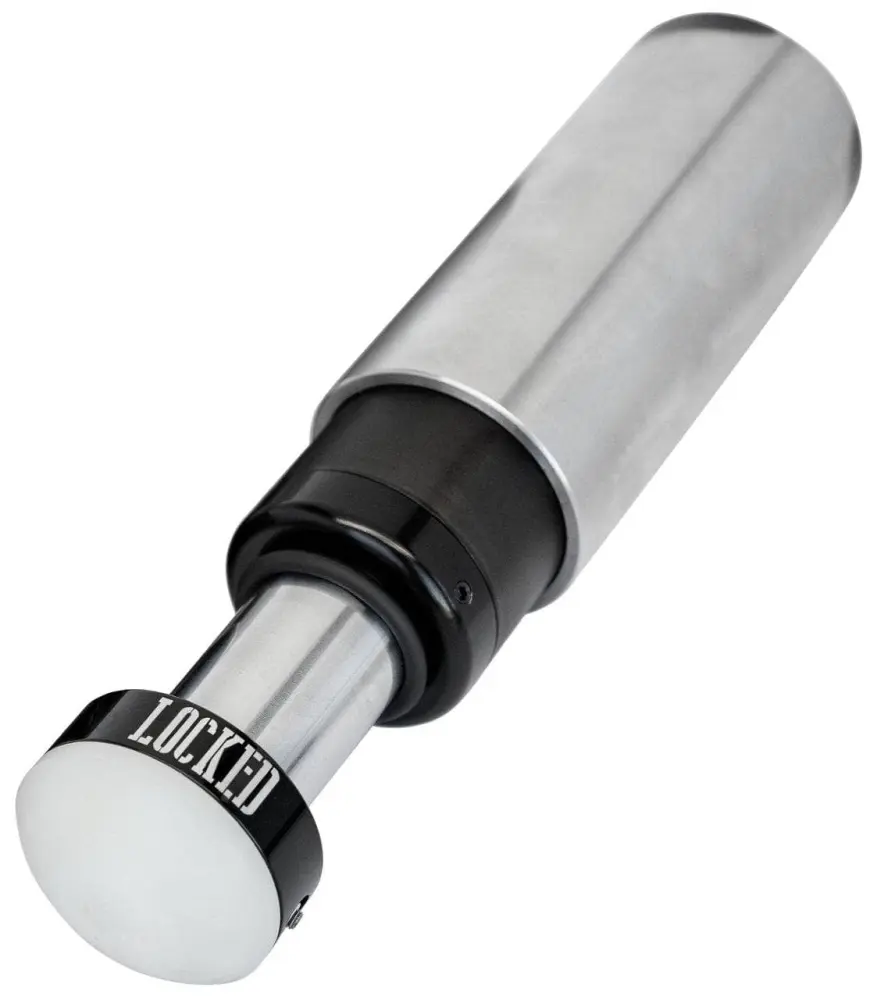

2.5″ Bump Stop Kit | Pin

Check Lead Times HERE INCLUDES: (2) 2 ✓ Free shipping on all orders ✓ Premium Quality Materials ► Sign Up for Free Access

Check Lead Times HERE

INCLUDES:

• (2) 2.5″ Bump Stops
• (2) Pin-Style Mounting Sleeves (threaded style also available)

TECHNICAL SPECS:

• 2.5″ Diameter Body
• 1.58″ Shaft
• 2.5″ Stroke: Extended 13.5″ | Collapsed 11″
• 4″ Stroke: Prolonged 15.5″ | Collapsed 11.5″
• Hard-chromed and polished shaft prevents rust and maximizes seal life
• Schrader cap mounts immediately to the body for a cleaner, stronger seal
• Travel indicator O-ring on shaft
• Indexing pin prevents outer tube pinching
• Delrin contact pad with flush-mount design for quiet, metal-free contact

MOUNTING SLEEVES:

• Heavy-duty, weld-ready construction
• Pin-style sleeves offer full 360° coverage—no pinch points
• Engineered with extra space
